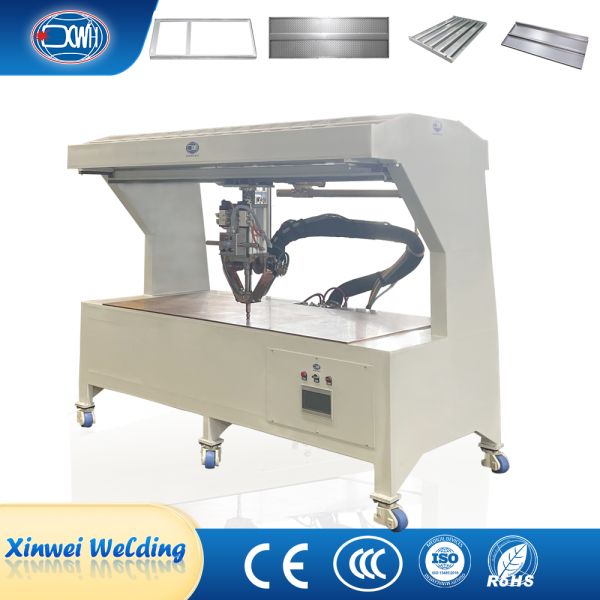

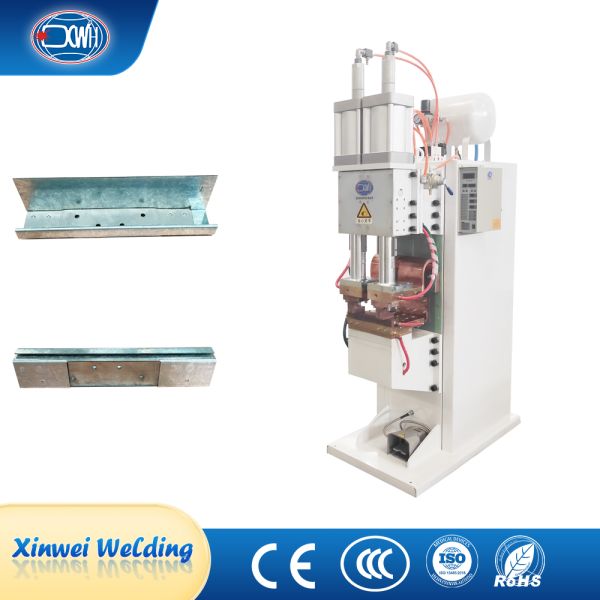

Automatic Multi Point Resistance Welding Machine for Steel Door Production
Xinwei automatic multi point resistance welding machine is designed for steel doors, security doors and metal panel production. With multiple welding heads and XY axis positioning control, the machine enables fast, accurate and consistent welding for high-volume manufacturing.
✓ Multiple Welding Points Completed Efficiently
✓ XY Axis Positioning For Precise Welding
✓ Designed For Steel Door Mass Production
Watch It Work
Automatic Multi Point Resistance Welding Machine For Steel Door Production
Steel Door Manufacturing Challenges
Traditional steel door production faces several common challenges in resistance spot welding:
✗ Multiple manual positioning for each welding point
✗ Inconsistent weld quality between production batches
✗ High labor cost for repetitive welding operations
✗ Slow production speed for mass manufacturing
Automatic Multi Point Welding Solution
The Xinwei automatic multi point resistance welding machine transforms steel door production by enabling multiple welding points to be completed in one operation cycle. This eliminates repeated manual positioning and significantly improves manufacturing efficiency.

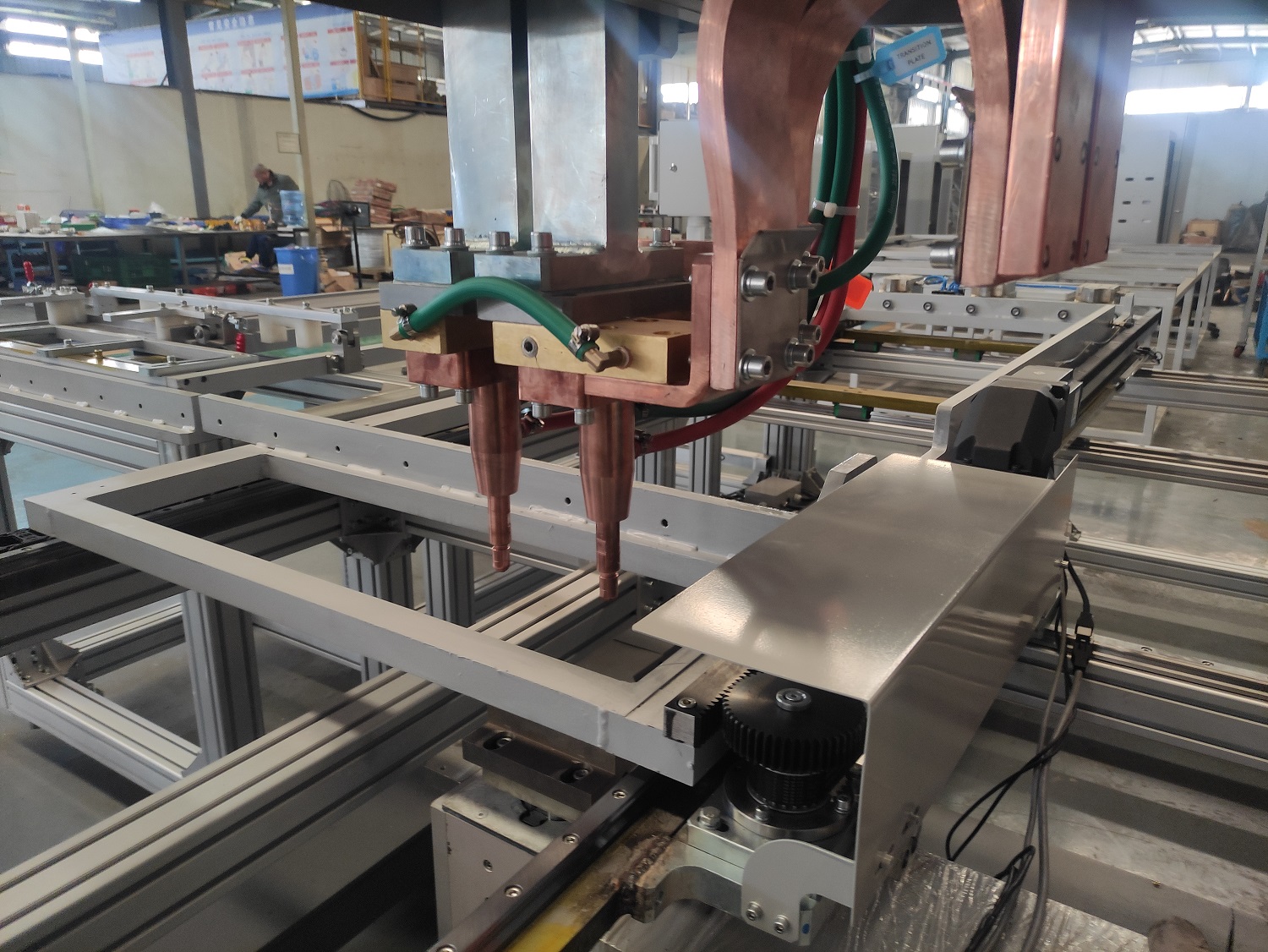

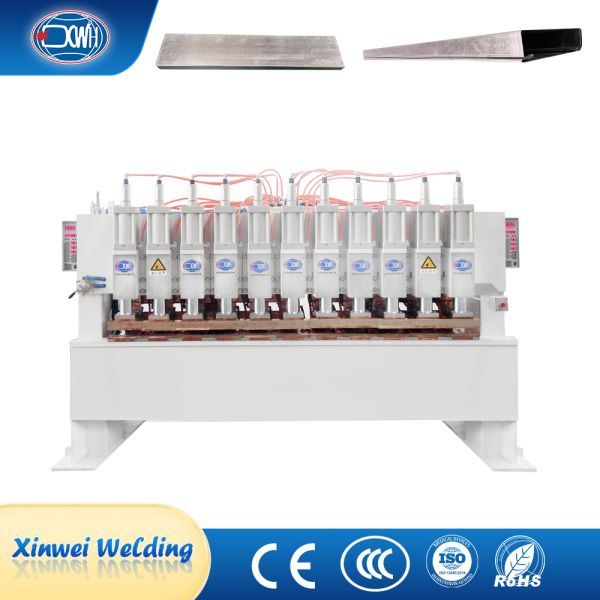

1. Multiple Welding Heads Increase Productivity
Several welding heads work in coordination, allowing multiple welding points to be completed efficiently in one operation cycle. This design is ideal for steel doors that require numerous weld points for structural integrity.

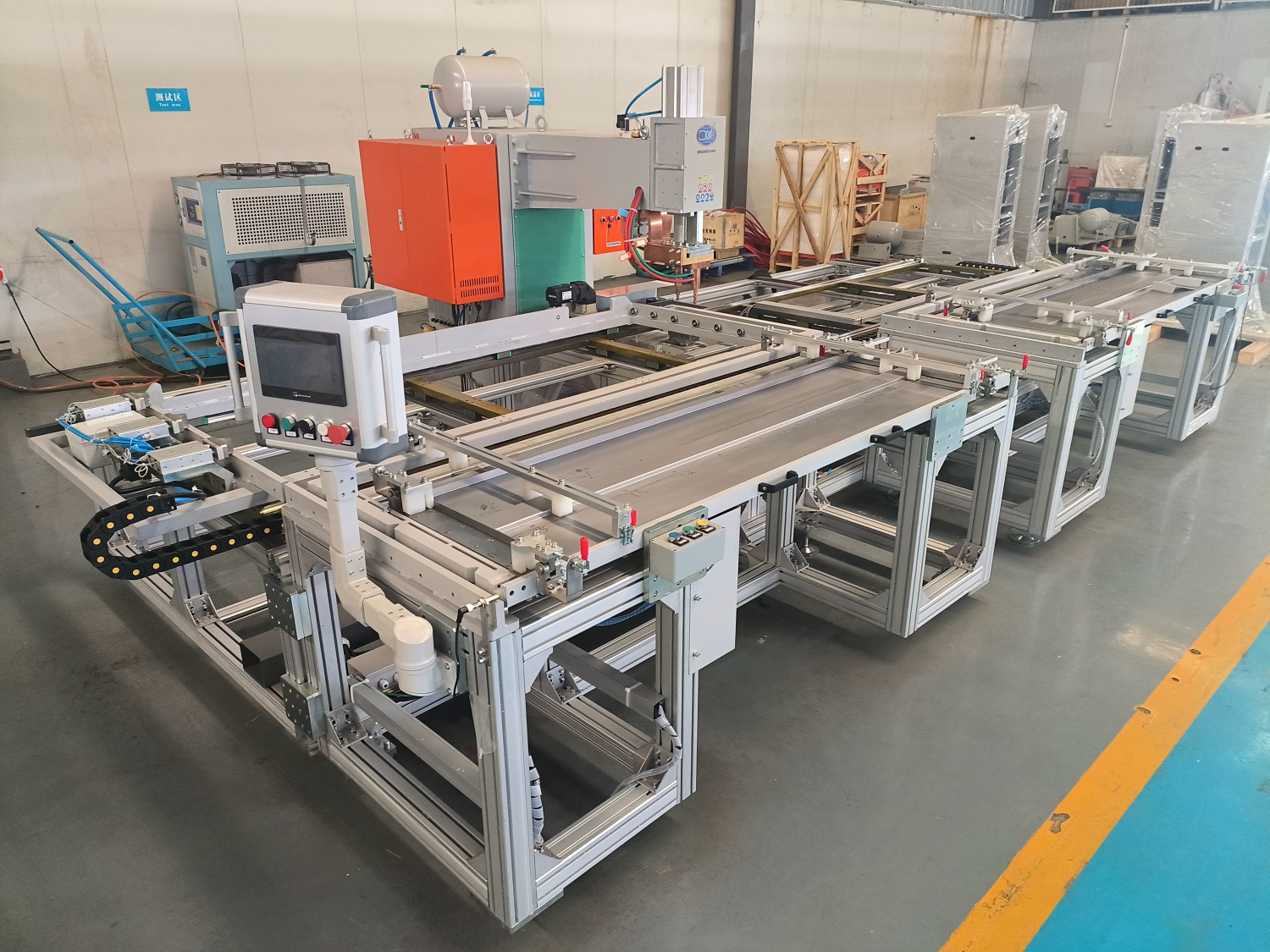

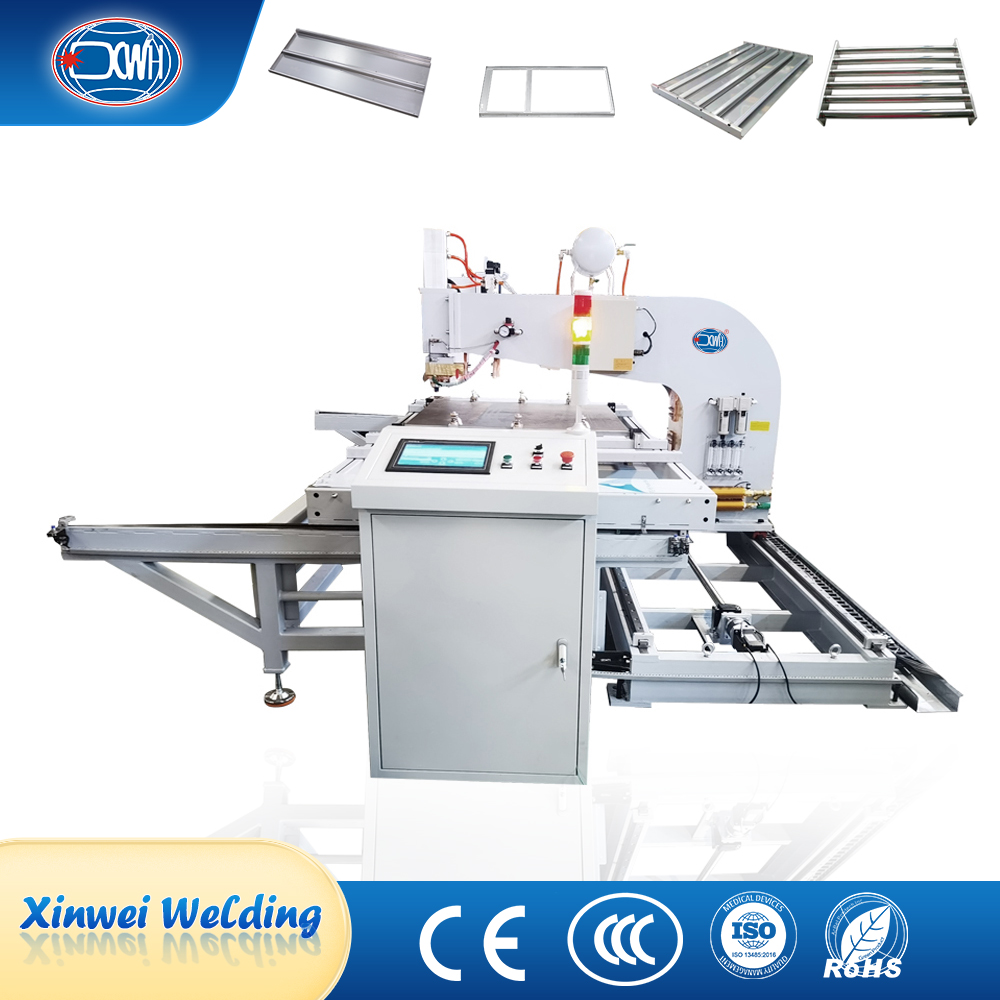

2. XY Axis Precision Positioning
The XY axis positioning system provides accurate and repeatable welding position control, adapting to different door designs and welding layouts without mechanical adjustment.
3. Stable Pneumatic Electrode Pressure
Individual electrode pressure adjustment helps maintain consistent weld quality across all welding heads, reducing welding variation and improving product appearance.

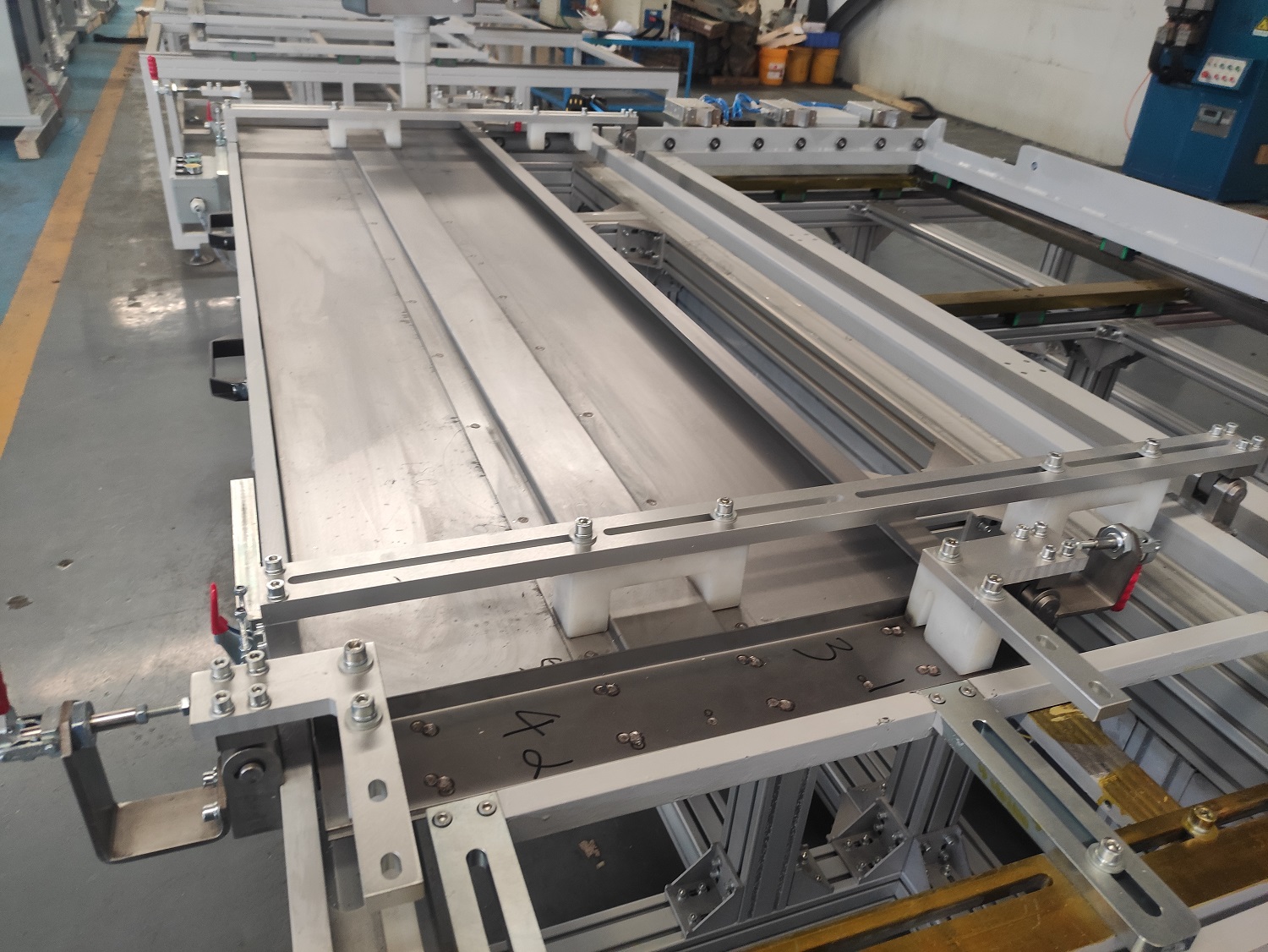

4. Customized Welding Layout
Welding heads, fixtures and welding point layouts can be customized according to customer door structures and specific production requirements.

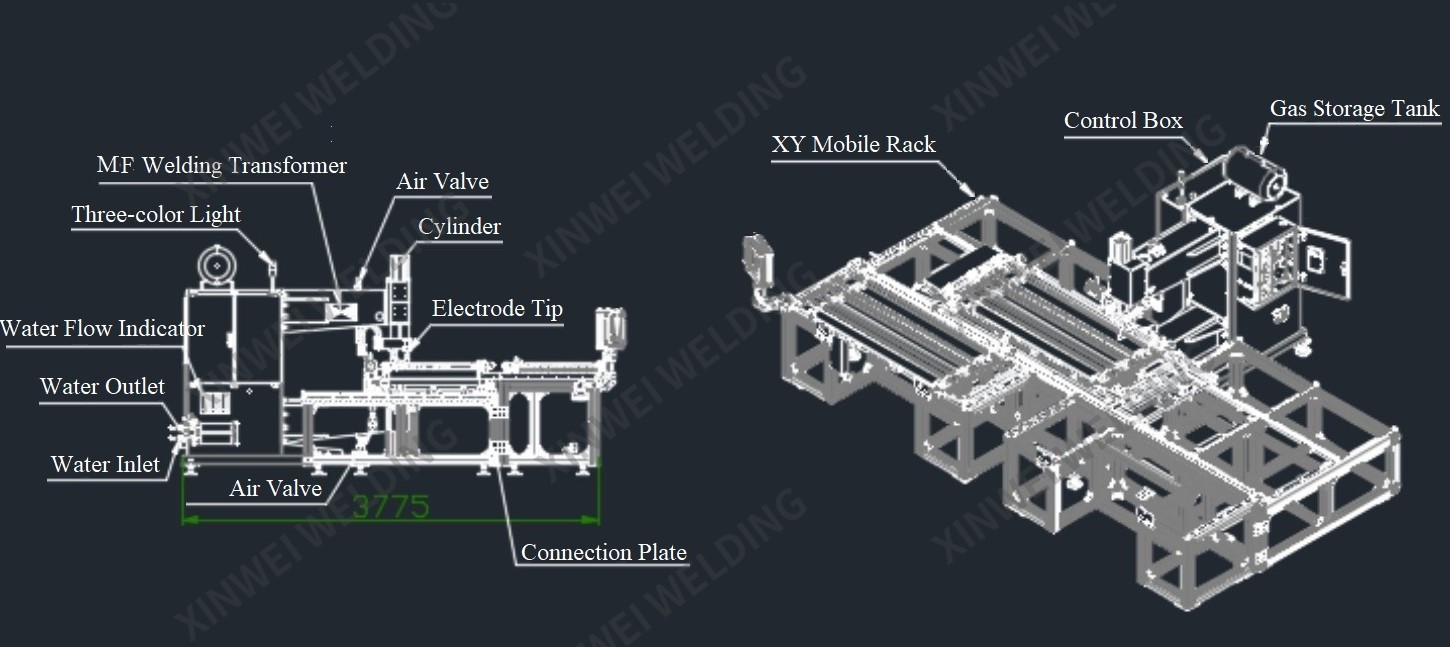

How XY Axis System Improves Production
The XY axis control system allows welding heads to move precisely to programmed positions. This eliminates manual measurement and positioning, making it possible to switch between different door models quickly. The system stores welding parameters for different products, reducing setup time and ensuring consistent production quality.
Manual Welding vs Multi Point Automatic Welding
| Item |
Manual Welding |
Multi Point Automatic |
| Production Speed |
Low |
High |
| Weld Consistency |
Operator Dependent |
Stable |
| Labor Requirement |
High |
Low |
| Mass Production |
Difficult |
Ideal |
| Quality Control |
Operator Skill |
Parameter Control |
Industrial Applications
Security Door Manufacturing - Anti-theft doors, security doors, entrance steel doors requiring multiple welding points for structural strength and security features.
Fire Door Production - Fire rated doors, steel frames and reinforcement panels that demand consistent weld quality for safety certification.

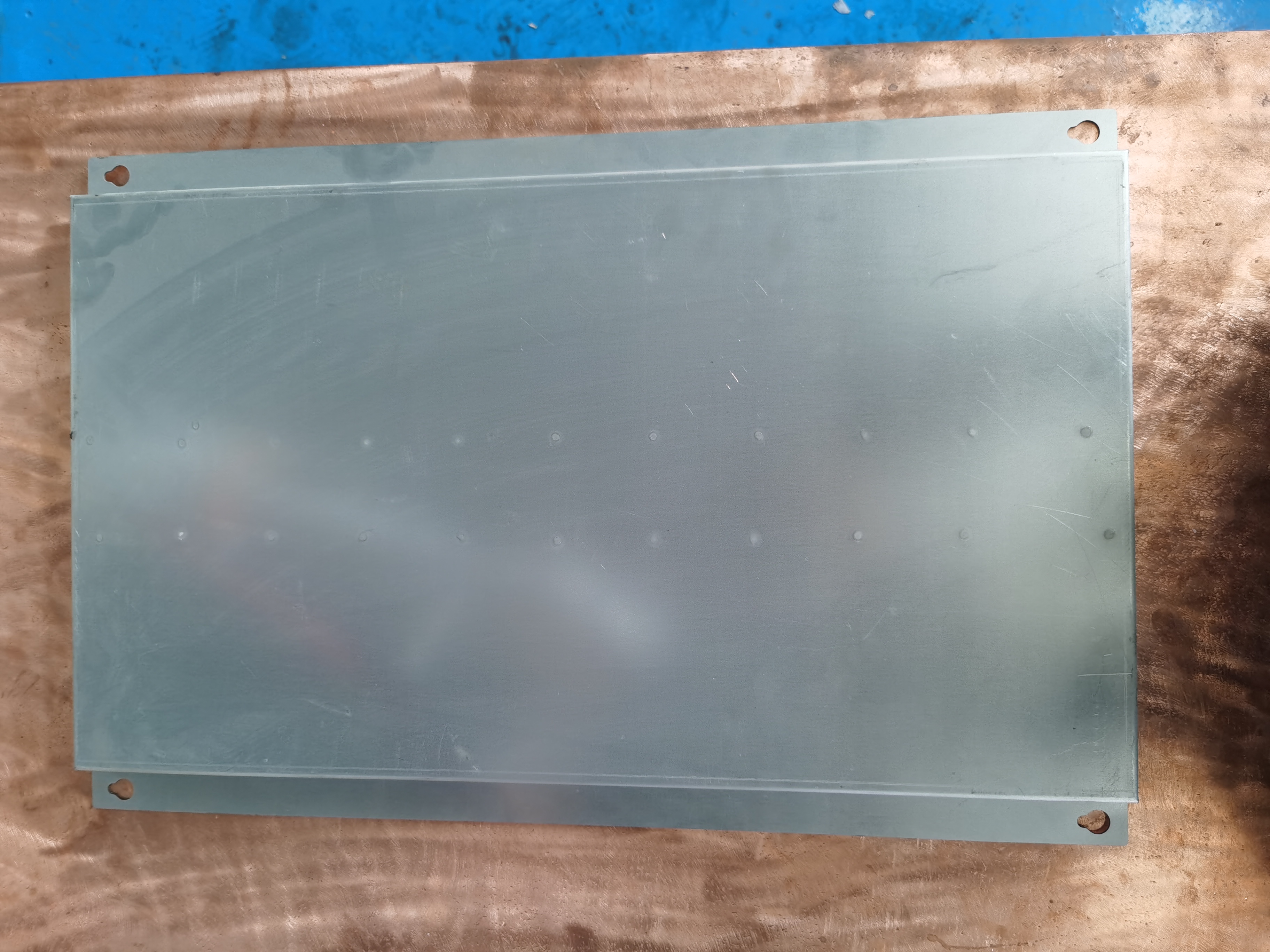

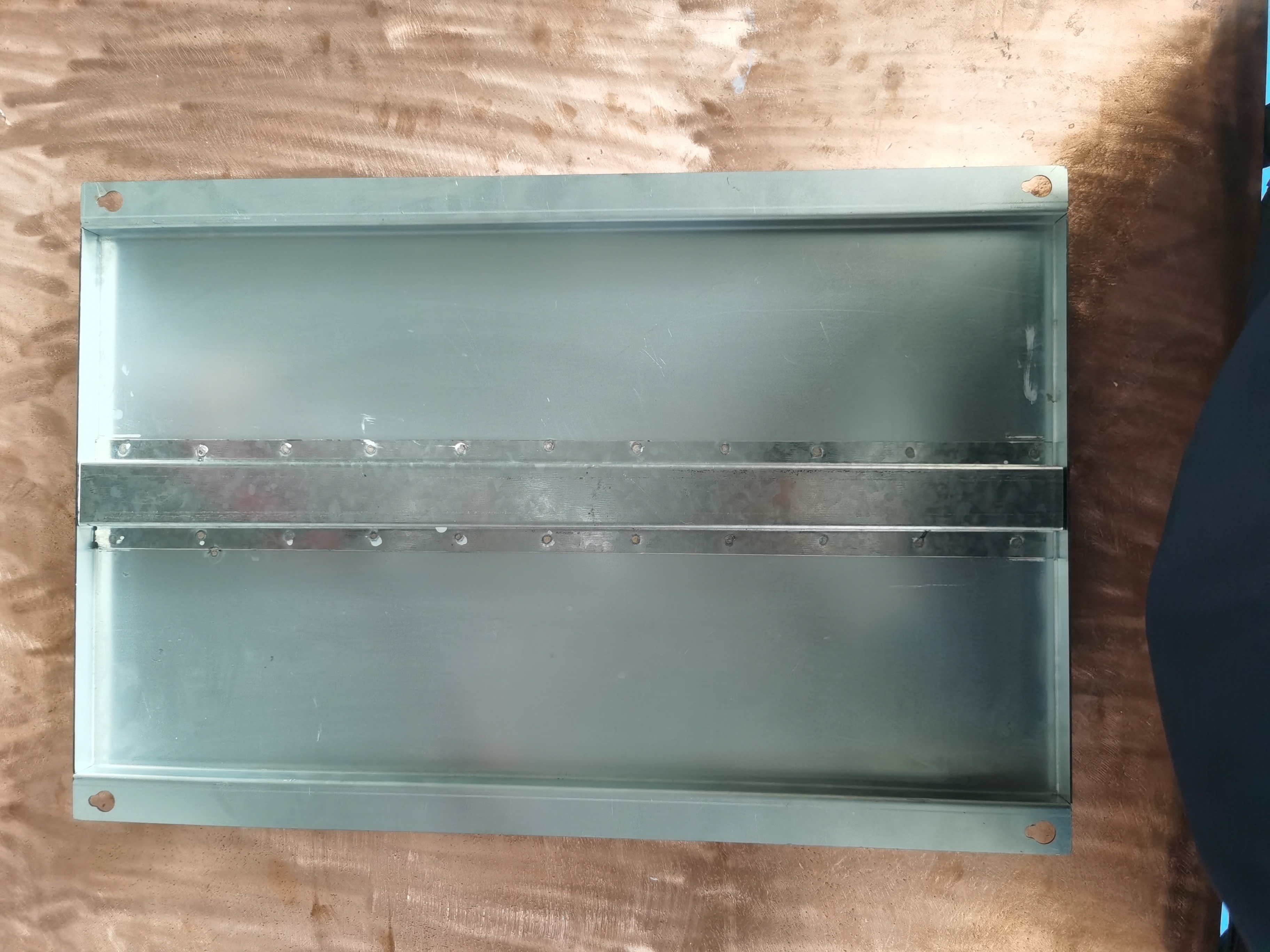

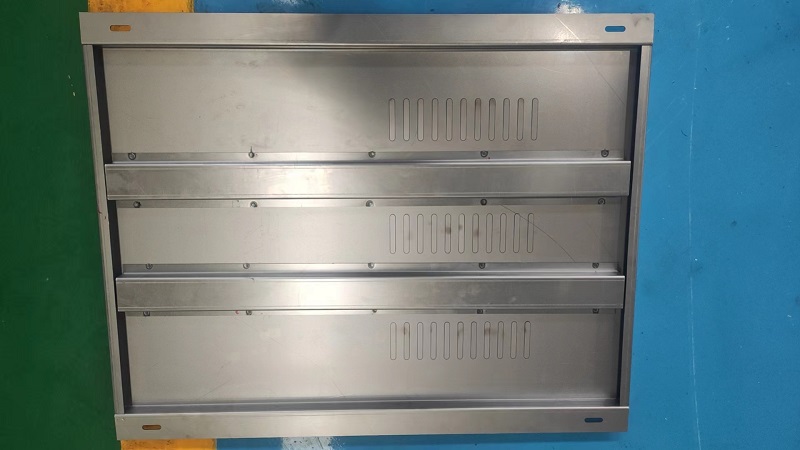

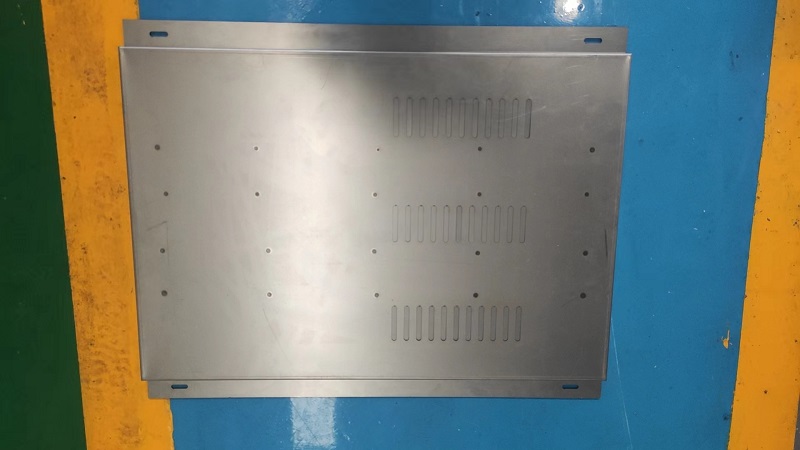

Metal Door Panel Welding - Door skins, steel panels and internal reinforcement structures used in commercial and industrial door manufacturing.
Sheet Metal Fabrication - Industrial panels, metal cabinets and custom steel structures that benefit from automated multi point processing.
Technical Specifications
| Parameter |
Description |
| Machine Type |
Automatic Multi Point Resistance Welder |
| Application |
Steel Door Manufacturing |
| Welding Method |
Resistance Spot Welding |
| Welding Head |
Multi Head / Double Head |
| Position Control |
XY Axis System |
| Pressure System |
Pneumatic |
| Material |
Steel / Stainless Steel |
| Customization |
Available |
Xinwei Steel Door Welding Engineering Capability
Xinwei provides customized resistance welding solutions for steel door manufacturers. Our engineering team supports:
✓ Door Structure Analysis
✓ Welding Point Layout Design
✓ Electrode Customization
✓ Welding Parameter Optimization
✓ Sample Testing And Verification
✓ Production Line Commissioning
Quality Control System
✓ ISO 9001 Certified Manufacturing Process
✓ CE And RoHS Compliance
✓ Each Machine Tested Before Shipment
✓ Welding Parameter Documentation Provided
✓ 12 Month Warranty With Spare Parts Support
About Xinwei Welding
Xinwei Welding Technology Co., Ltd. operates an 18,000 square meter manufacturing facility with a dedicated R and D team of over 20 engineers. ISO 9001, CE and RoHS certified. Serving customers in more than 30 countries worldwide.
Frequently Asked Questions
Q: What products can this multi point welding machine weld?
It is mainly designed for steel doors, security doors, fire doors and metal panels requiring multiple welding points in mass production.
Q: What is the advantage of XY axis control?
XY axis positioning improves welding accuracy and allows flexible welding layouts for different door designs without mechanical adjustment.
Q: Can welding heads be customized for specific door designs?
Yes. Welding heads, fixtures and welding point layouts can be customized according to customer door structures and production requirements.
Q: Can Xinwei test our door samples before production?
Yes. Xinwei provides sample welding tests and engineering recommendations before finalizing the machine configuration.
Get Your Steel Door Welding Solution
Send us the following information for a customized welding solution:
1. Door structure and dimensions
2. Material type and thickness
3. Welding point requirements and layout
4. Target production capacity
Our engineers will recommend the suitable welding system configuration.
